РАМА в Алматы
BOB-TACH
1Артикул: BOB-TACH, BOB-TACH NLA - for 31,8 mm (1.25--) dia lift arm pin - W/Ref. 6 (NLA/ 6577445 bushing) - 57,2 mm (2.25--) OD weld-on bushings - Order 6709215 Bob-Tach & (2) of Ref. 4 - Also Order 6561383 decal - Was 6571744 - A
2Артикул: BOB-TACH, BOB-TACH NLA - for 31,8 mm(1.25--) dia lift arm pin - W/Ref. 7 - 63,5 mm (2.50--) OD weld-on bushings - Order 6709215 Bob-Tach & (2) of Ref. 4 - Remove Ref. 5 from Bob-Tach & replace W/Ref. 4 - Also Order 6561383 decal - Was 6571744 - A
3Артикул: BOB-TACH, BOB-TACH NLA - for 38,1 mm (1.50--) dia lift arm pin - W/Ref. 5 & 7 - 63,5 mm (2.50--) OD weld-on bushings - Order 6709215 Bob-Tach - Also Order 6561383 decal - Was 6571744 - A
СИДЕНИЕ (МИЧИГАН)
1Артикул: SEAT, SEAT NLA - W/Ref. 2-5 & 8 - Order 6669135 Seat - Was 6667684 - A
2Артикул: 6669135, SEAT, OPERATOR VINYL See Illustration SEAT COVERS/ NA10386 W/Ref. 2-7
3Артикул: 6670160, CUSHION W/edging, clip & (2) grommets

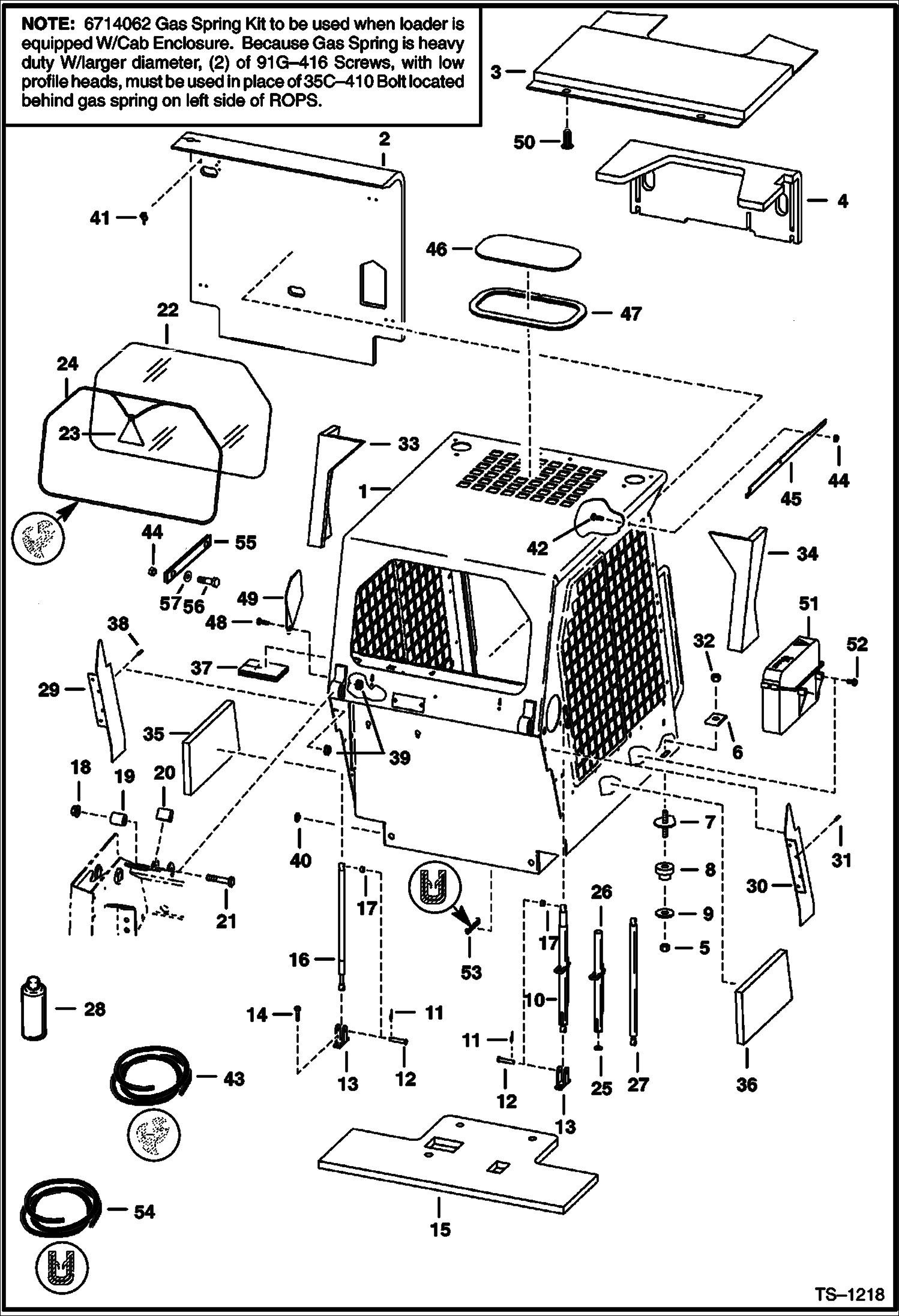

КАБИНА ОПЕРАТОРА
1Артикул: 6701957, OPERATOR CAB Does NOT include cab decals
2Артикул: 6708682, INSULATION seat back - Use W/Ref. 41 - Was 6707326 - A
3Артикул: 6706155, INSULATION cab top - Use W/Ref. 41
ПАНЕЛИ
1Артикул: 6707316, PLATE
2Артикул: 84G3712, BOLT 5
3Артикул: SHIELD, SHIELD NLA - Order (2) of Ref. 2 & (1) ea. of Ref. 10, 11 & 6734520 cover - Was 6706917 - A
ТОПЛИВНАЯ СИСТЕМА
1Артикул: TANK, TANK NLA - Order 6717572 Tank, Ref. 16 (6717402 Bushing) & Ref. 36 (6717401 Plug) - Was 6575897 - A
2Артикул: 6736659, TANK, FUEL Was 6717572 - A
3Артикул: 7120881, SCREEN, FILLER Was 6569219 - A
СИДЕНИЕ И ОПОРА СИДЕНЬЯ
1Артикул: SEAT, SEAT See Illustration SEAT/ B7185 - Standard seat requires (1) of Ref. 1 located on RH side - Suspension seat requires (2) of Ref. 2 located one each side
2Артикул: SEAT, SEAT BELT NLA - Order Ref. 64 - Was 6564774 - A
3Артикул: SEAT, SEAT BELT NLA - Order 6675074 Seat Belt & (2) of Ref. 3 (6725373 Spring Plate) - Was 6667875 - A
ПОДЪЕМНЫЕ РУКОЯТИ И BOBTACH
1Артикул: 6547593, PIN, PIVOT
2Артикул: 6704288, PIN, PIVOT
3Артикул: 6555455, WASHER for 1.25--(31,8 mm) dia. pin
СИДЕНЬЕ (MILSCO)
1Артикул: 6563140, SEAT seat - black - Was 6665401 - A
2Артикул: CUSHION, CUSHION NLA - seat - gray
3Артикул: 6630468, CUSHION seat - black
ЗАДНЯЯ ДВЕРЬ (НЕРАЗБОРНЫЙ) (СЕРИЙНЫЙ НОМЕР 509643761 И ВЫШЕ, 509616768 - 509634999)
1Артикул: 6670287, COVER
2Артикул: BUMPER, BUMPER NLA - Order 6655399 Bumper & (2) 61D000005B Nut - Was 6714454 - A
3Артикул: 6655399, BUMPER
ЗАДНЯЯ ДВЕРЬ (ДВЕ ЧАСТИ) (СЕРИЙНЫЙ НОМЕР 509635001 - 509643760, 509616001 - 509616767)
1Артикул: 6703868, HOOD See Illustration ENGINE & ATTACHING PARTS/ E2168 - steel
2Артикул: 6704682, COVER
3Артикул: 6704683, COVER
