ГИДРАВЛИЧЕСКИЙ БАК И ФИЛЬТР в Алматы
×
![]()
Характеристики и описание

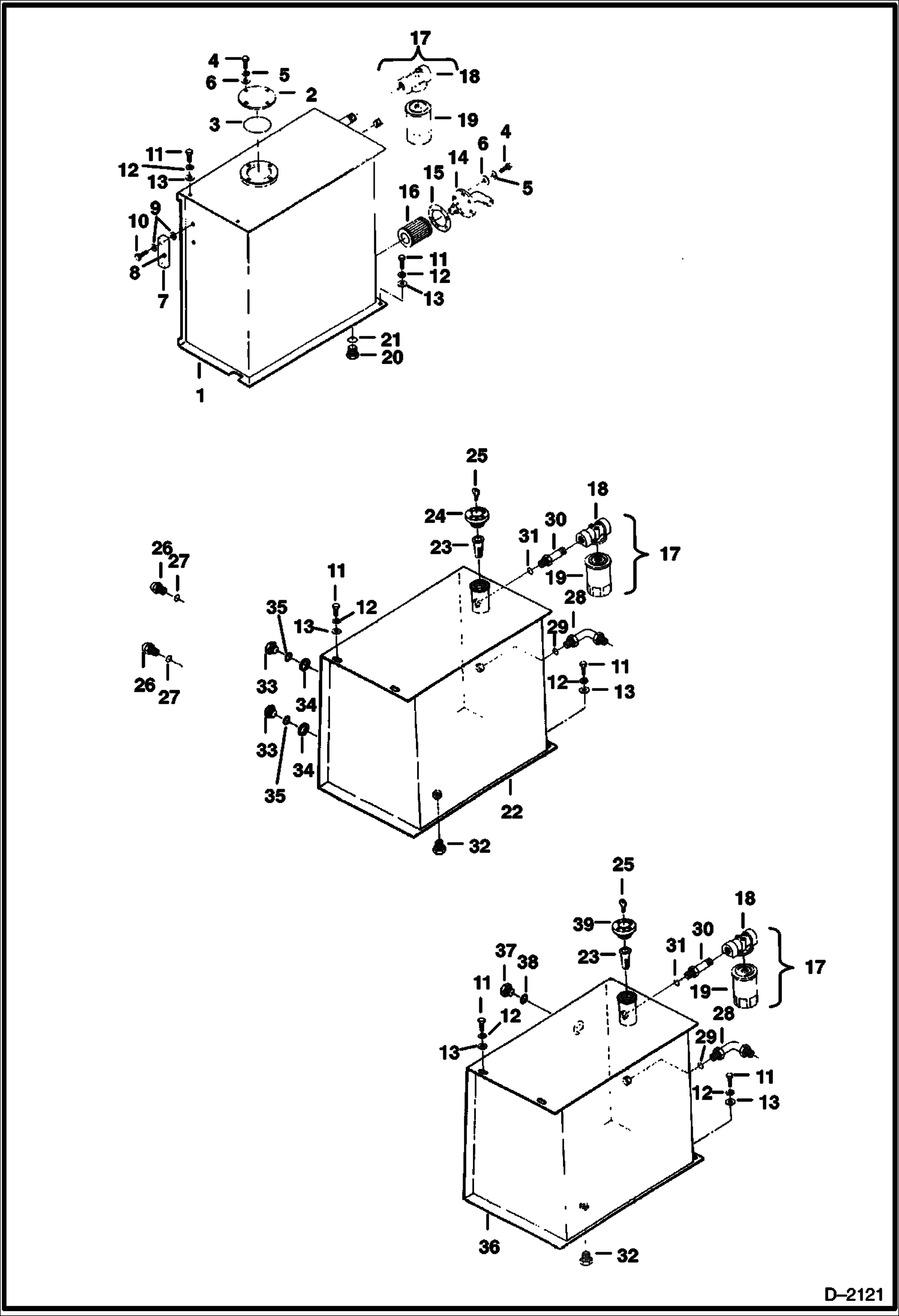

Габариты, схема
Техническая документация
| 1 | Артикул: TANK, TANK NLA - Order Ref. 28, 30, 36-39 and Elbow 17K-5, Hose 6700215 & Adapter 6654377 - Was 6536086 - A |
| 2 | Артикул: 6535149, PLATE NLA - Was 6535149 - A |
| 3 | Артикул: O-RING, O-RING NLA - Was 6534254 - A |
| 4 | Артикул: 1CM820, BOLT |
| 5 | Артикул: 6EM80, WASHER, SPRING |
| 6 | Артикул: 15EM80, WASHER |
| 7 | Артикул: GAUGE, GAUGE NLA - Was 6535146 - A |
| 8 | Артикул: BALL, BALL NSS |
| 9 | Артикул: GASKET, GASKET NSS |
| 10 | Артикул: BOLT, BOLT NSS |
| 11 | Артикул: 1CM1020, BOLT |
| 12 | Артикул: 6EM100, WASHER |
| 13 | Артикул: 15EM100, WASHER |
| 14 | Артикул: 6535514, PLATE NLA - Was 6535514 - A |
| 15 | Артикул: 6534834, GASKET NLA - Was 6534834 - A |
| 16 | Артикул: FILTER, FILTER NLA - FILTER - Was 6534264 - A |
| 17 | Артикул: FILTER, FILTER NLA - assy - Ref. 18 & 19 - Was 6655072 - A |
| 18 | Артикул: HEAD, HEAD NLA - Was 6655073 - A |
| 19 | Артикул: 6653336, ELEMENT |
| 20 | Артикул: PLUG, PLUG NLA - W/Ref. 21 - Was 6534265 - A |
| 21 | Артикул: 6655247, O-RING NLA - Was 6655247 - A |
| 22 | Артикул: TANK, TANK NLA - W/Ref. 32 - Order Ref. 36-39 - Was 6536183 - A |
| 23 | Артикул: 7120881, SCREEN, FILLER Was 6569219 - A |
| 24 | Артикул: 6661696, CAP, FUEL LOCKING W/Ref. 25 - Was 6654373 - A |
| 25 | Артикул: 6654374, KEY |
| 26 | Артикул: BULB, BULB NLA - Sight Gauge - W/Ref. 27 - Order Ref. 33 (2), 34 (2) & 35 (2) |
| 27 | Артикул: O-RING, O-RING NLA |
| 28 | Артикул: 6656340, ELBOW W/Ref. 29 |
| 29 | Артикул: 91F2, O-RING Was 91F000012B - A |
| 30 | Артикул: 6535626, ADAPTER W/Ref. 31 |
| 31 | Артикул: 79K16, O RING 10 Was 91F000010B - A |
| 32 | Артикул: 40K12, PLUG |
| 33 | Артикул: 6539386, SIGHT GAUGE |
| 34 | Артикул: 6539342, WASHER NLA - Was 6539342 - A |
| 35 | Артикул: 79K10, O RING 10 |
| 36 | Артикул: TANK, TANK NLA - W/Ref. 32 - Was 6539307 - A |
| 37 | Артикул: 6665915, GAUGE Sight gauge - Was 6656338 - A |
| 38 | Артикул: 79K12, O RING 10 |
| 39 | Артикул: 6659249, CAP Locking - vented - W/Ref. 25 - intake .75 PSI, exhaust 1-1/2 PSI |
ГИДРАВЛИЧЕСКИЙ БАК И ФИЛЬТР: Техника, которая работает на результат
ГИДРАВЛИЧЕСКИЙ БАК И ФИЛЬТР на мини-экскаватор Bobcat 231 508911001 - 508911999 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
