ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH в Алматы
×
![]()
Характеристики и описание

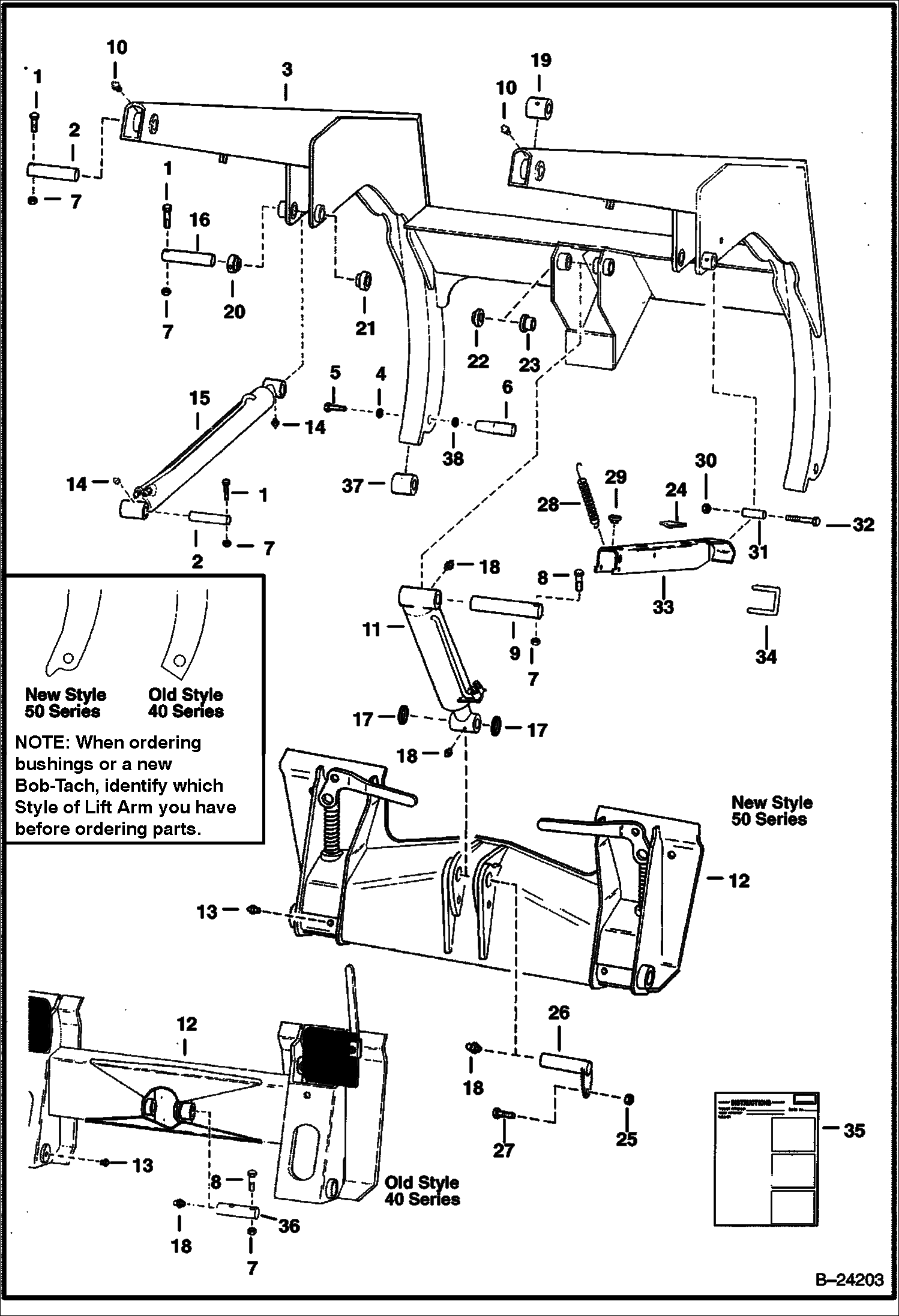

Габариты, схема
Техническая документация
| 1 | Артикул: 17C640, BOLT |
| 2 | Артикул: 6547595, PIN |
| 3 | Артикул: 6703953, LIFT ARM Was 6702894 - A |
| 4 | Артикул: 6555455, WASHER |
| 5 | Артикул: 17C1020, BOLT 5 1.25-- (31,8 mm) long |
| 6 | Артикул: 31C1064, BOLT 4-- (101,6 mm) - Was 17C001064B - B |
| 7 | Артикул: PIN, PIN NLA - Order 6707521 Pin Kit |
| 8 | Артикул: 6707521, PIN KIT W/6732012 Pin, 31C001064B Bolt & Ref. 35 |
| 9 | Артикул: 6732012, PIN, PIVOT Was 6707042 - A |
| 10 | Артикул: 85D6, NUT, 5 |
| 11 | Артикул: 17C632, BOLT 5 |
| 12 | Артикул: 6704288, PIN, PIVOT Was 6553061 - A |
| 13 | Артикул: 10H35, FITTING, GREASE 10 |
| 14 | Артикул: CYLINDER, CYLINDER See Illustration TILT CYLINDER/ B18047 See Illustration TILT CYLINDER/ C2742 - tilt |
| 15 | Артикул: BOB-TACH, BOB-TACH See Illustration BOB-TACH/ PE1527 - SALES |
| 16 | Артикул: 743332, FITTING, GREASE 5 |
| 17 | Артикул: 11H15, GREASE FITTING |
| 18 | Артикул: CYLINDER, CYLINDER See Illustration LIFT CYLINDER/ B6942 See Illustration LIFT CYLINDER/ B2206 - lift |
| 19 | Артикул: 6547593, PIN, PIVOT |
| 20 | Артикул: 6654117, SEAL, OIL 51 mm (2--) OD - new style Bob-Tach |
| 21 | Артикул: 225855, SEAL, OIL 10 38 mm (1.5--) OD - new style Bob-Tach |
| 22 | Артикул: 6513605, SEAL For old style Bob-tach |
| 23 | Артикул: 10H25, FITTING, GREASE 5 |
| 24 | Артикул: 6578356, BUSHING Weld On |
| 25 | Артикул: 6555987, BUSHING weld on |
| 26 | Артикул: 6555989, BUSHING Weld On |
| 27 | Артикул: 6703363, BUSHING Weld On - New Style See Note |
| 28 | Артикул: 6558779, BUSHING Weld On - Old Style See Note |
| 29 | Артикул: BUSHING, BUSHING NLA - Weld On - New Style See Note Order 6704287 & 6704288 - Was 6703364 - A |
| 30 | Артикул: 6737623, BUSHING Weld On - New Style See Note - Was 6704287 - A |
| 31 | Артикул: 6558803, BUSHING Weld On - Old Style See Note |
| 32 | Артикул: 6704436, PAD New Style See Note |
| 33 | Артикул: 85D6, NUT, 5 New Style See Note |
| 34 | Артикул: 6705223, PIN New Style See Note - Was 6700037 - A |
| 35 | Артикул: 17C620, BOLT New Style See Note |
| 36 | Артикул: 6579072, SPRING New Style See Note - Was 6700743 - A |
| 37 | Артикул: 6519178, BUMPER New Style See Note |
| 38 | Артикул: 61D6, NUT 5 New Style See Note |
| 39 | Артикул: 6700469, SPACER New Style See Note |
| 40 | Артикул: 17C648, BOLT 5 New Style See Note |
| 41 | Артикул: 6705089, LIFT ARM STOP New Style See Note - Was 6700615 - A |
| 42 | Артикул: 6714810, PIN retainer - New Style See Note - Was 6578457 - A |
| 43 | Артикул: 6722967, INSTRUCTIONS For Ref. 6 |
| 44 | Артикул: 6703572, PIN, PIVOT Old Style See Note - Was 6560704 - A |
| 45 | Артикул: 6714874, BUSHING, WELD-ON weld-on-W/tapered hole - 1.25--(31,8 mm) |
| 46 | Артикул: 27E18, WASHER 5 See BTI178 |
ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH: Техника, которая работает на результат
ПОДЪЕМНАЯ РУКОЯТЬ И BOB-TACH на Bobcat 700s Bobcat 743 5025M50001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
