СИДЕНИЕ И ОПОРА СИДЕНЬЯ в Алматы
×
![]()
Характеристики и описание

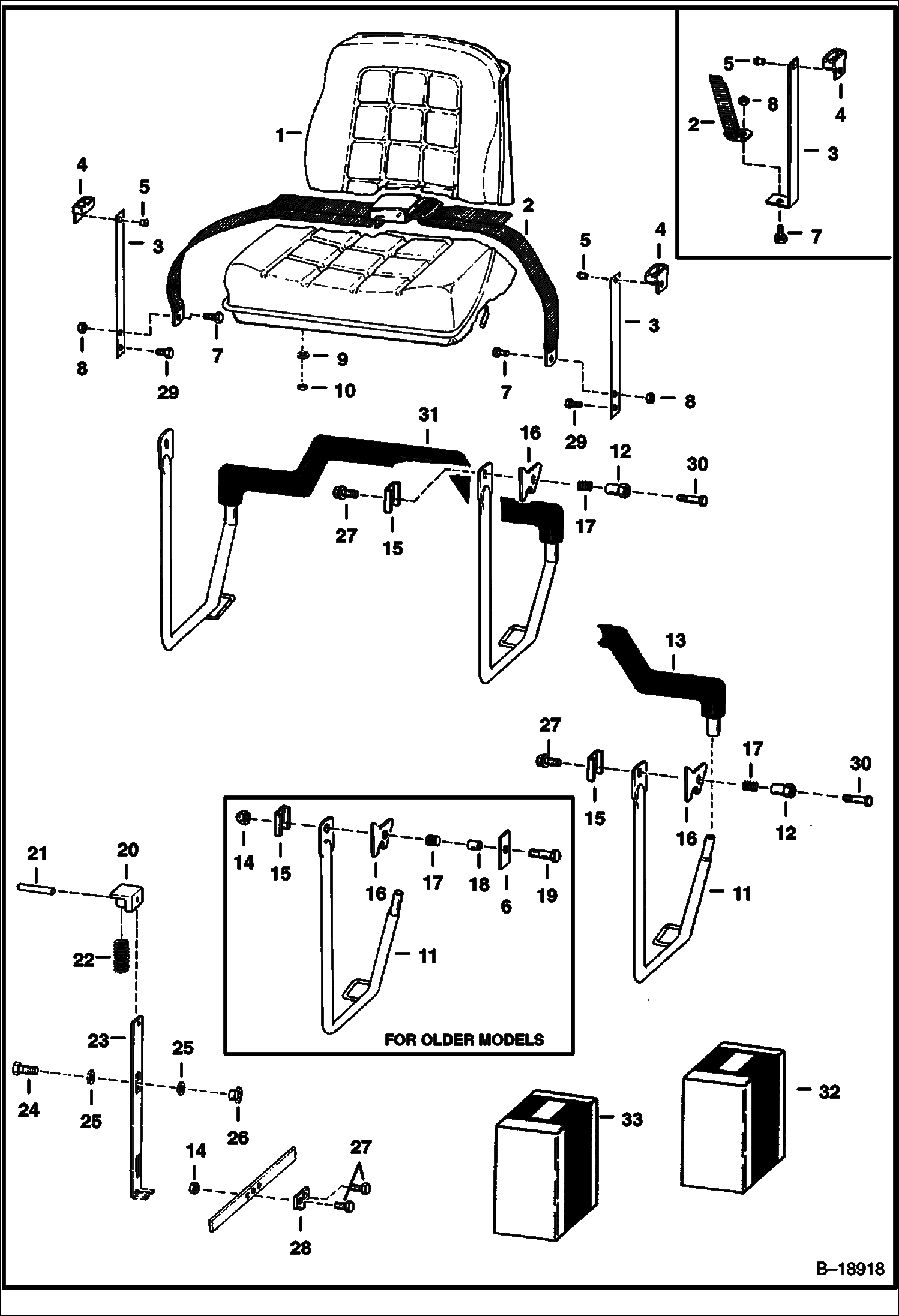

Габариты, схема
Техническая документация
| 1 | Артикул: SEAT, SEAT See Illustration SEAT/ B7185 - new |
| 2 | Артикул: SEAT, SEAT BELT NLA - Order 6713061 -Was 6564774 - A |
| 3 | Артикул: SEAT, SEAT BELT NLA - Order 6675074 seat belt - Was 6667875 - A |
| 4 | Артикул: SEAT, SEAT BELT NLA - W/spring plates - Order 6675074 seat belt & (2) of Ref. 3 (6725373 spring plate) - Was 6725403 - A |
| 5 | Артикул: 6675074, SEAT BELT W/O spring plates |
| 6 | Артикул: GUIDE, GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75 - Used W/Ref. 2 (NLA/6564774 seat belt) - Was 6565354 - A |
| 7 | Артикул: GUIDE, GUIDE ASSY. NLA - W/Ref. 4 & 5 - 12.25 - Used W/Ref. 2 (NLA/6667875 seat belt) - Order 6711908 spring plate, Ref. 4 & (2) Ref. 5 - Was 6711907 - A |
| 8 | Артикул: 6711908, SPRING PLATE Use W/Ref. 2 (NLA/667875 seat belt) |
| 9 | Артикул: 6725373, SPRING PLATE Use W/Ref. 2 (6675074 seal belt) |
| 10 | Артикул: GUIDE, GUIDE NLA - Order 6703703 - Was 6565355 |
| 11 | Артикул: 6630207, RIVET 5 Was 6512797 - A |
| 12 | Артикул: 6564506, WASHER |
| 13 | Артикул: 17C716, BOLT |
| 14 | Артикул: 85D7, NUT |
| 15 | Артикул: 4E5, WASHER Was 4E000006B - B |
| 16 | Артикул: 61D5, NUT Was 61D000006B - B |
| 17 | Артикул: ARM, ARM NLA - Order Ref. 31 - Was 6563296 - A |
| 18 | Артикул: ARM, ARM NLA - Order Ref. 31 - Was 6563295 - A |
| 19 | Артикул: 6568742, BUSHING |
| 20 | Артикул: SEAT, SEAT BAR NLA - Order Ref. 31 - Was 6563095 - A |
| 21 | Артикул: 83D6, NUT 5 |
| 22 | Артикул: 6563557, WASHER |
| 23 | Артикул: 6563313, RETAINER |
| 24 | Артикул: 6704453, SPRING Was 6503387 - A |
| 25 | Артикул: 6564507, BUSHING |
| 26 | Артикул: 17C636, BOLT |
| 27 | Артикул: 6563148, BLOCK, SPRING |
| 28 | Артикул: 14J2512, PIN 5 |
| 29 | Артикул: 6702430, SPRING, COMPRESSION Was 6702430 - C |
| 30 | Артикул: 6563150, LOCK |
| 31 | Артикул: 17C612, BOLT 5 |
| 32 | Артикул: 6700170, WASHER nylon - Was 6563152 - A |
| 33 | Артикул: 6559479, NUT |
| 34 | Артикул: 17C616, BOLT 5 |
| 35 | Артикул: 6563151, LINK |
| 36 | Артикул: 84G3712, BOLT 5 |
| 37 | Артикул: 35C608, BOLT |
| 38 | Артикул: 6706324, SEAT BAR 1 Piece - W/Ref. 11 & 13 - Was 6564588 - A |
| 39 | Артикул: 6706796, KIT See Illustration SEAT BAR KIT/ C3341 - Gas Spring Seat Bar |
| 40 | Артикул: KIT, KIT NLA - W/Ref. 2 & 3 - Order Ref. 2 (NLA/6725403 seat belt) - Was 6713061 - A |
СИДЕНИЕ И ОПОРА СИДЕНЬЯ: Техника, которая работает на результат
СИДЕНИЕ И ОПОРА СИДЕНЬЯ на Bobcat 700s Bobcat 743 5025M50001 И ВЫШЕ – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
