СИДЕНИЕ И ОПОРА СИДЕНЬЯ в Алматы
×
![]()
Характеристики и описание

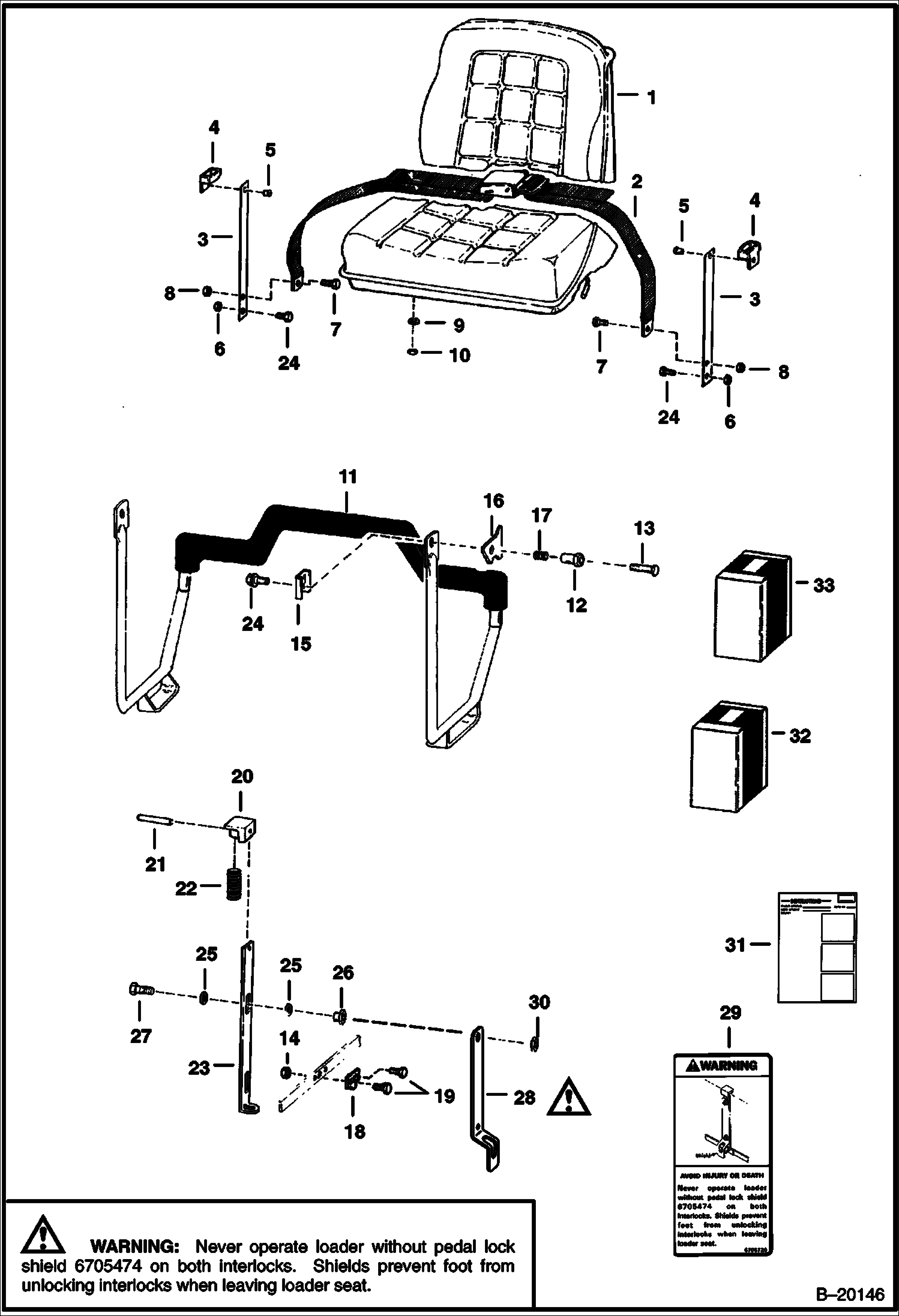

Габариты, схема
Техническая документация
| 1 | Артикул: SEAT, SEAT See Illustration SEAT/ B7185 |
| 2 | Артикул: SEAT, SEAT BELT NLA - Order Ref. 33 - Was 6564774 - A |
| 3 | Артикул: SEAT, SEAT BELT NLA - W/ Spring Plates - Order 6675074 Seat Belt & (2) Of Ref. 3 (6725373 Spring Plate) - Was 6667875 - A |
| 4 | Артикул: SEAT, SEAT BELT NLA - W/ Spring Plates - Order 6675074 Seat Belt & (2) Of Ref. 3 (6725373 Spring Plate) - Was 6725403 - A |
| 5 | Артикул: 6675074, SEAT BELT W/O spring plates |
| 6 | Артикул: GUIDE, GUIDE ASSY. NLA - W/Ref. 4 & 5 - 13.75 in. Used W/ NLA/6564774 - Was 6565354 - A |
| 7 | Артикул: GUIDE, GUIDE ASSY. NLA - W/Ref. 4 & 5 - 12.25 in. Use W/ (NLA/6667875) Seat Belt - Order 6711908 Spring Plate, Ref. 4 & (2) Of Ref. 5 - Was 6711907 - A |
| 8 | Артикул: 6711908, SPRING PLATE Use W/Ref. 2 (NLA/6667875 Seat Belt) |
| 9 | Артикул: 6725373, SPRING PLATE Use W/Ref. 2 (6675074 seal belt) |
| 10 | Артикул: GUIDE, GUIDE NLA - Order 6703703 - Was 6565355 |
| 11 | Артикул: 6630207, RIVET 5 Was 6512797 - A |
| 12 | Артикул: 85D6, NUT, 5 |
| 13 | Артикул: 17C716, BOLT |
| 14 | Артикул: 85D7, NUT |
| 15 | Артикул: 4E5, WASHER |
| 16 | Артикул: 61D5, NUT |
| 17 | Артикул: 6706324, SEAT BAR one piece - Was 6703301 - A |
| 18 | Артикул: 6568742, BUSHING |
| 19 | Артикул: 35C608, BOLT |
| 20 | Артикул: 83D6, NUT 5 |
| 21 | Артикул: 6563557, WASHER |
| 22 | Артикул: 6563313, RETAINER |
| 23 | Артикул: 6704453, SPRING Was 6578252 - A |
| 24 | Артикул: 6563151, LINK |
| 25 | Артикул: 17C616, BOLT 5 |
| 26 | Артикул: 6563148, BLOCK, SPRING |
| 27 | Артикул: 14J2512, PIN 5 |
| 28 | Артикул: 6702430, SPRING, COMPRESSION Was 6563149 - A |
| 29 | Артикул: 6578150, LOCK |
| 30 | Артикул: 84G3712, BOLT 5 |
| 31 | Артикул: 6700170, WASHER nylon - Was 65700170 - A |
| 32 | Артикул: 6559479, NUT |
| 33 | Артикул: 6705489, BOLT Was 84G003724B - A |
| 34 | Артикул: 6705474, LOCK SHIELD Never operate loader without pedal lock shield on both interlocks ... SEE WARNING ON PREVIOUS PAGE |
| 35 | Артикул: 6705720, DECAL Was 6705488 - A |
| 36 | Артикул: 59D6, NUT NUT |
| 37 | Артикул: 6722392, INSTRUCTIONS for Ref. 28 |
| 38 | Артикул: 6706796, KIT See Illustration SEAT BAR KIT/ C3341 - gas spring seat bar |
| 39 | Артикул: KIT, KIT NLA - W/Ref. 2 & 3 - Order Ref. 2 (6675074 Seat Belt) & (2) Of Ref. 3 (6725373 Spring Plate) - Was 6713061 - A |
СИДЕНИЕ И ОПОРА СИДЕНЬЯ: Техника, которая работает на результат
СИДЕНИЕ И ОПОРА СИДЕНЬЯ на Bobcat 800s Bobcat 853 508411001 - 508414999, 509711001 - 509714999 – купить по доступной цене в интернет-магазине «Ремзона»Габаритные размеры
