СИСТЕМА ВПРЫСКА ТОПЛИВА в Алматы
×
![]()
Характеристики и описание

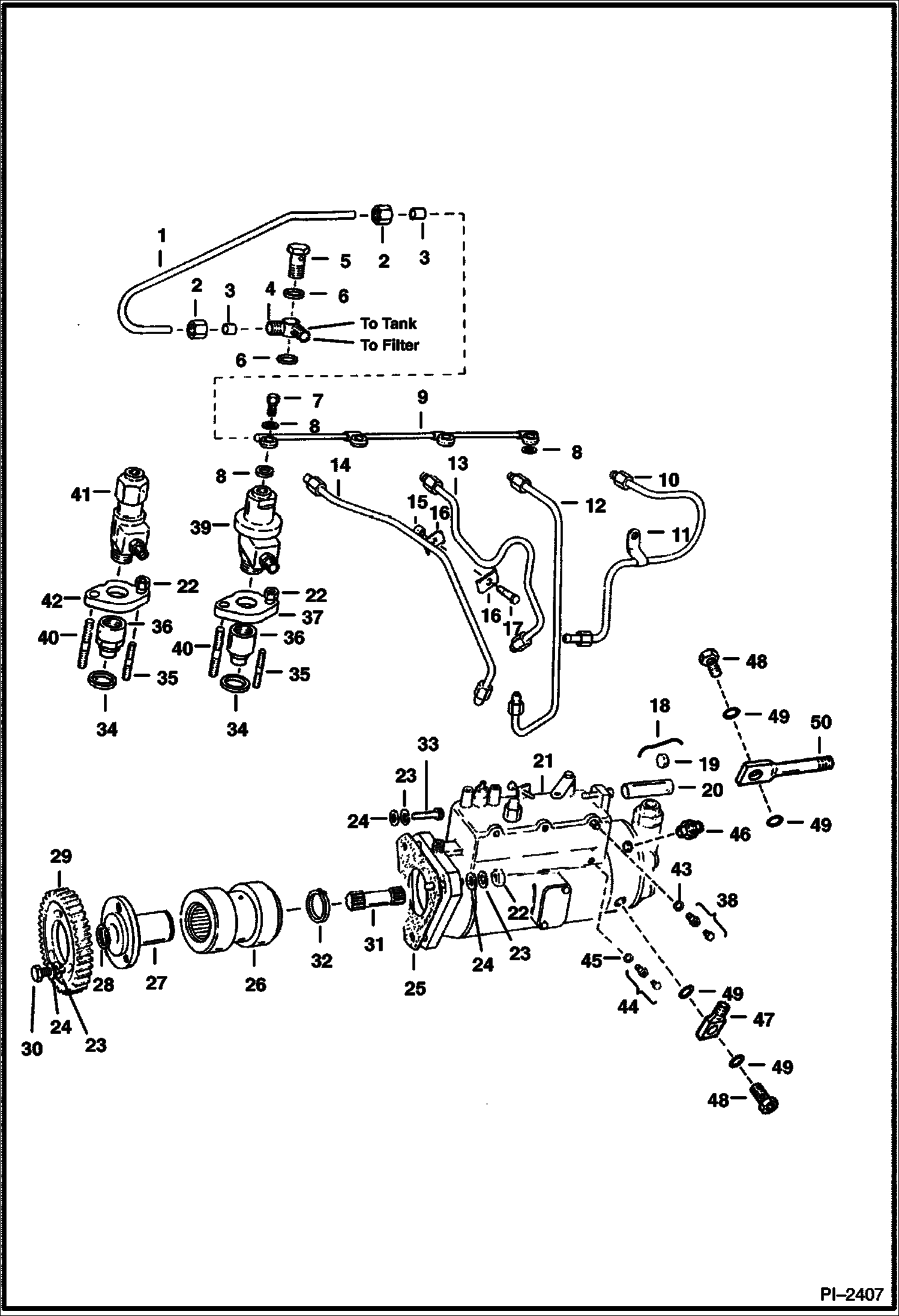

Габариты, схема
Техническая документация
| 1 | Артикул: PIPE, PIPE NLA - Was 6510465 - A |
| 2 | Артикул: 3490133, UNION NUT |
| 3 | Артикул: 3490132, SEAL |
| 4 | Артикул: 3490200, FITTING banjo |
| 5 | Артикул: 3490352, BOLT banjo |
| 6 | Артикул: 3490351, WASHER |
| 7 | Артикул: 3490094, BOLT banjo |
| 8 | Артикул: 3490095, WASHER 5 |
| 9 | Артикул: 6510464, PIPE leak-off |
| 10 | Артикул: PIPE, PIPE cylinder - No. 4 - Was 6510459 - A |
| 11 | Артикул: CLIP, CLIP NLA - pipe - No. 4 - Was 6510460 - A |
| 12 | Артикул: PIPE, PIPE NLA - cylinder - No. 3 - Was 6510458 - A |
| 13 | Артикул: PIPE, PIPE NLA - cylinder - No.2 - Was 6510457 - A |
| 14 | Артикул: 6510456, PIPE cylinder - No. 1 |
| 15 | Артикул: NUT, NUT NLA - Was 6660649 - A |
| 16 | Артикул: CLIP, CLIP NLA - Order 6660647, (2) 6660648 & 6660649 - Was 3490347B - A |
| 17 | Артикул: 6660647, CLIP |
| 18 | Артикул: 6660648, BOLT Was 86G001014B - B |
| 19 | Артикул: 3490325, WIRE |
| 20 | Артикул: 3490324, SEAL |
| 21 | Артикул: 3490323, SLEEVE throttle lever adj. screw |
| 22 | Артикул: PUMP, PUMP NLA - fuel injection - Was 6512312 |
| 23 | Артикул: PUMP,, PUMP, FUEL INJ. PERKINS 4.108 NLA - Was 6512312REM - A |
| 24 | Артикул: 62D5, NUT |
| 25 | Артикул: 4E5, WASHER |
| 26 | Артикул: 3725700, WASHER plain |
| 27 | Артикул: 6668020, GASKET Was 3490326B - A |
| 28 | Артикул: BEARING, BEARING NLA - Was 6510558 - A |
| 29 | Артикул: HOUSG, HOUSG BRG NLA - Was 3734952 - A |
| 30 | Артикул: 3734157, BSHG |
| 31 | Артикул: HUB, HUB NLA - Was 6510454 - A |
| 32 | Артикул: 3734944, HUB |
| 33 | Артикул: SNAP, SNAP RING NLA -Was 666446 - A |
| 34 | Артикул: SHAFT, SHAFT NLA - Was 6510455 - A |
| 35 | Артикул: 3490214, SCREW |
| 36 | Артикул: SHAFT, SHAFT NLA - quill - Was 6512394 - A |
| 37 | Артикул: SNAP, SNAP RING NLA - Was 666712 - A |
| 38 | Артикул: SNAP, SNAP RING NLA - Was 1300303 - A |
| 39 | Артикул: 18C524, BOLT |
| 40 | Артикул: 3490720, WASHER |
| 41 | Артикул: 6510488, STUD |
| 42 | Артикул: 6510462, NOZZLE |
| 43 | Артикул: FLANGE, FLANGE NSS |
| 44 | Артикул: SCREW, SCREW NLA - vent - Was 6598065 - A |
| 45 | Артикул: INJECTOR, INJECTOR NLA - Order Ref. 41 |
| 46 | Артикул: 3490292, STUD |
| 47 | Артикул: INJECTOR, INJECTOR NLA - W/Ref. 36 & 42 - Was 6599333 - A |
| 48 | Артикул: 6510463, FLANGE |
| 49 | Артикул: WASHER, WASHER NLA - Was 6598066 - A |
| 50 | Артикул: 6598063, SCREW vent |
| 51 | Артикул: 6598064, WASHER |
| 52 | Артикул: 3739167, CONNECTOR |
| 53 | Артикул: 3739017, BANJO |
| 54 | Артикул: SCREW, SCREW NLA - Was 3748597 - A |
| 55 | Артикул: 3739007, WASHER |
| 56 | Артикул: 3739041, BANJ.CONN |
